Product Summary

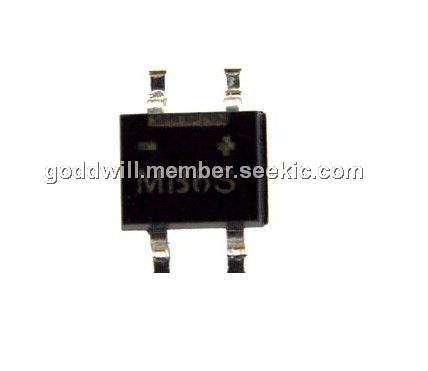

The MB6S is a Bridge Rectifier.

Parametrics

Absolute maximum ratings: (1)Maximum Repetitive Reverse Voltage: 600 V; (2)Maximum RMS Bridge Input Voltage: 420 V; (3)DC Reverse Voltage (Rated VR): 600 V; (4)Average Rectified Forward Current, @ TA = 50℃: 0.5 A; (5)Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave: 35 A; (6)Storage Temperature Range: -55 to +150 ℃; (7)Operating Junction Temperature: -55 to +150 ℃.

Features

Features: (1)Low leakage; (2)Surge overload rating: 35 amperes peak; (3)Ideal for printed circuit board; (4)UL certified, UL #E111753.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MB6S
MB6S
Fairchild Semiconductor
Bridge Rectifiers 0.5A Bridge
Data Sheet
0-1: $0.30
1-25: $0.20
25-100: $0.16
100-250: $0.13
MB6S_Q
MB6S_Q
Fairchild Semiconductor
Bridge Rectifiers 0.5A Bridge
Data Sheet
Negotiable
MB6S-E3/45
MB6S-E3/45
Vishay Semiconductors
Bridge Rectifiers 600 Volt 0.5 Amp 35 Amp IFSM
Data Sheet
0-1: $0.26
1-100: $0.19
100-500: $0.15
500-1000: $0.13
MB6S-E3/80
MB6S-E3/80
Vishay Semiconductors
Bridge Rectifiers 600 Volt 0.5 Amp 35 Amp IFSM
Data Sheet
0-1: $0.27
1-10: $0.23
10-100: $0.20
100-250: $0.18
MB6S-TP
MB6S-TP
Micro Commercial Components (MCC)
Bridge Rectifiers .5A 600V
Data Sheet
0-1: $0.35
1-25: $0.27
25-100: $0.23
100-500: $0.19
