Product Summary

The L7805 series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications.

Parametrics

Absolute maximum ratings: (1)DC input voltage: for VO= 5 to 18 V: 35 V, for VO= 20, 24 V: 40 V; (2)Output current: Internally limited; (3)Power dissipation: Internally limited; (4)Storage temperature range: -65 to 150 ℃; (5)Operating junction temperature range: -55 to 150 ℃.

Features

Features: (1)Output current to 1.5 A; (2)Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.

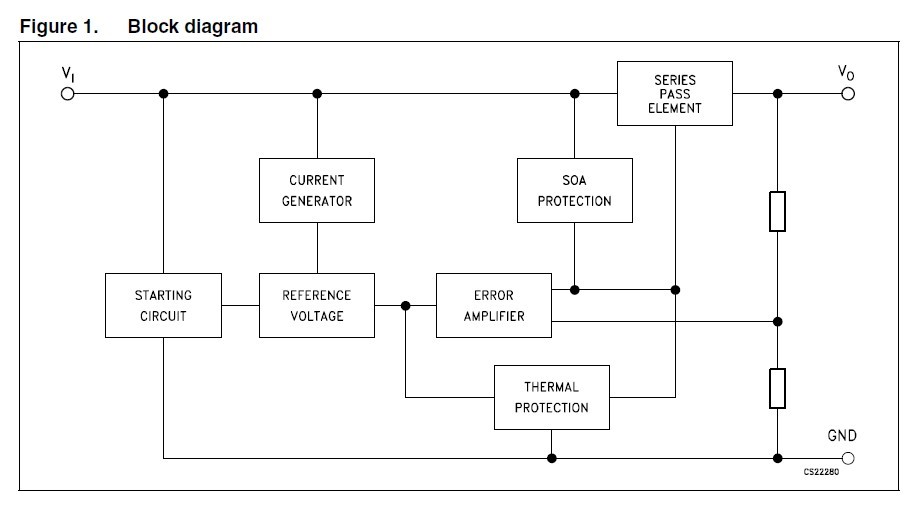

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7805
L7805
Other

Data Sheet
Negotiable
L7805ABD2T
L7805ABD2T
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
Negotiable
L7805ABD2T-TR
L7805ABD2T-TR
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
0-1: $0.51
1-10: $0.40
10-100: $0.35
100-250: $0.30
L7805ABP
L7805ABP
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
0-1: $0.55
1-10: $0.43
10-100: $0.37
100-250: $0.32
L7805ABV
L7805ABV
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
0-1: $0.35
1-10: $0.28
10-100: $0.23
100-250: $0.21
L7805ACD2T
L7805ACD2T
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
Negotiable
L7805AC-D2TR
L7805AC-D2TR

IC REG LDO 5V 1.5A D2PAK
Data Sheet
0-2000: $0.27
L7805ACD2T-TR
L7805ACD2T-TR
STMicroelectronics
Linear Regulators - Standard 5.0V 1.0A Positive
Data Sheet
0-1: $0.47
1-10: $0.40
10-100: $0.32
100-250: $0.28
