Product Summary

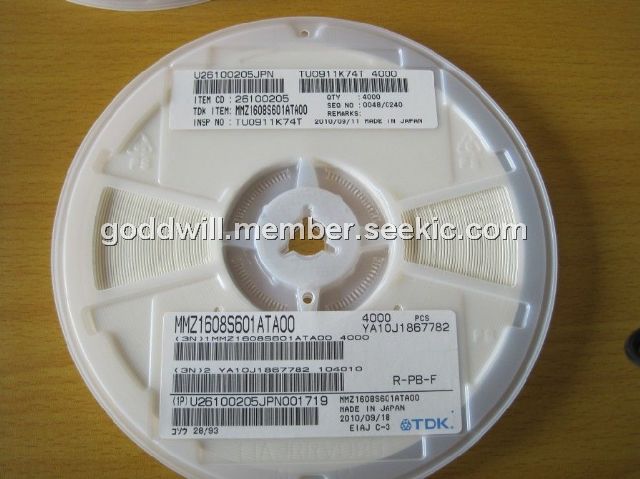

The MMZ1608S601ATA00 is a Chip Bead(SMD) for signal line. The device contains no lead and also support lead-free soldering. It is a product conforming to RoHS directive.

Parametrics

Eectrical characteristics: (1)Impedance(100MHz):600±25% Ω; (2)DC resistance: 0.35Ω max.; (3)Rated current:500mA max.; (4)Product’s thickness:0.8mm.

Features

Features: (1)Chip bead(impeder), MMZ series offers 7 construction materials; (2)Size standardized for use by automatic assembly equipment. No preferred orientation; (3)Either flow or reflow soldering methods can be used due to electroplating of the terminal electrodes; (4)High reliability due to an entirely monolithic structure; (5)Closed magnetic circuit structure allows high-density installation while preventing crosstalk between circuits; (6)Low DC resistance structure of electrode prevents wasteful electric power consumption.

Diagrams

MMZ1005
MMZ1005
Other

Data Sheet
Negotiable
MMZ1005A102E
MMZ1005A102E
TDK
EMI Filter Beads, Chokes & Arrays 0402 1000ohms 250mA
Data Sheet
