Product Summary

The IDT49FCT3805AP is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The IDT49FCT3805AP offers low capacitance inputs with hysteresis.

Parametrics

Absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to +4.6 V; (2)Terminal Voltage with Respect to GND: –0.5 to +7 V; (3)Terminal Voltage with Respect to GND: –0.5 to VCC+0.5 V; (4)Storage Temperature: –65 to +150 ℃; (5)DC Output Current: –60 to +60 mA.

Features

Features: (1)0.5 MICRON CMOS Technology; (2)Guaranteed low skew < 500ps (max.); (3)Very low duty cycle distortion < 1.0ns (max.); (4)Very low CMOS power levels; (5)TTL compatible inputs and outputs; (6)Inputs can be driven from 3.3V or 5V components; (7)Two independent output banks with 3-state control; (8)1:5 fanout per bank; (9)"Heartbeat" monitor output; (10)VCC = 3.3V±0.3V; (11)Available in SSOP, SOIC, and QSOP packages.

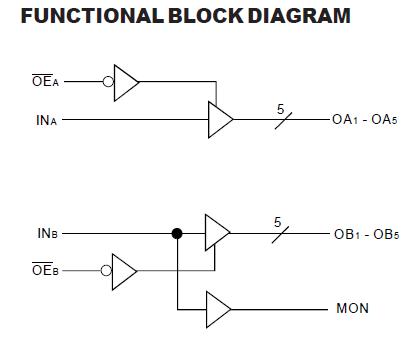

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT49FCT3805APY
IDT49FCT3805APY

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
Negotiable
IDT49FCT3805APY8
IDT49FCT3805APY8

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
Negotiable
IDT49FCT3805APYG
IDT49FCT3805APYG

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
0-1: $0.75
1-25: $0.60
25-100: $0.52
100-250: $0.46
250-500: $0.41
500-1000: $0.32
1000-2500: $0.30
2500-5000: $0.28
5000-10000: $0.27
IDT49FCT3805APYG8
IDT49FCT3805APYG8

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
0-1: $0.82
1-25: $0.64
25-100: $0.58
100-250: $0.50
250-500: $0.45
IDT49FCT3805APYGI
IDT49FCT3805APYGI

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
0-1: $0.97
1-25: $0.77
25-100: $0.67
100-250: $0.59
250-500: $0.52
500-1000: $0.41
1000-2500: $0.39
2500-5000: $0.37
5000-10000: $0.35
IDT49FCT3805APYGI8
IDT49FCT3805APYGI8

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
0-1: $1.04
1-25: $0.83
25-100: $0.74
100-250: $0.65
250-500: $0.58
IDT49FCT3805APYI
IDT49FCT3805APYI

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
Negotiable
IDT49FCT3805APYI8
IDT49FCT3805APYI8

IC CLK BUFFER 1:5 100MHZ 20-SSOP
Data Sheet
Negotiable
