Product Summary

The EVND8AA03B13 is a 6 mm square carbon composition trimmer potentiometer.

Parametrics

Specifications: (1)Nominal Total Resistance: 100Ωto 1 MΩ; (2)Taper: B; (3)Rating: R<500 kΩ : 0.1 W 50 V (50 ℃); R>500 kΩ : 0.1 W 25 V (50 ℃); (4)Residual Resistance: R<1 kΩ: 30Ω max., 1 kΩ<R<2 kΩ : 60Ω max. 2 kΩ<R<1 MΩ : 3 % max., or 200Ω max. whichever smaller; (5)Rotation Angle: 210 °±20 °; (6)Rotation Torque: 2 mN·m to 25 mN·m; (7)Stopper Strength Surface : 75 mN·m, reverse side: 35 mN·m.

Features

Features: (1)Top-adjust or side-adjust available; (2)Highly effi ciency automatic insertion with radial taping package; (3)High reliability (dustproof construction).

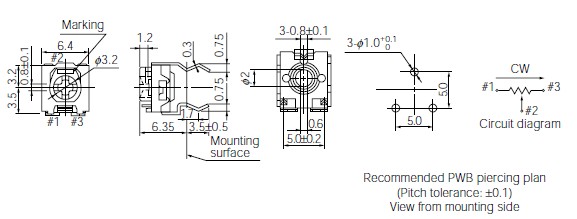

Diagrams
