Product Summary

The BSS84 is a P-CHANNEL enhancement mode field effect transistor.

Parametrics

Absolute maximum ratings: (1)Drain-Source Voltage:-50V ; (2)Drain-Gate Voltage RGS ≤ 20KΩ:-50V ; (3)Gate-Source Voltage:Continuous:±20V ; (4)Drain Current:Continuous:-130mA ; (5)Pulsed Drain Current:-1.2A.

Features

Features: (1)Low On-Resistance ; (2)Low Gate Threshold Voltage ; (3)Low Input Capacitance ; (4)Fast Switching Speed ; (5)Low Input/Output Leakage ; (6)Lead, Halogen and Antimony Free, RoHS Compliant; (7)"Green" Device; (8)Qualified to AEC-Q101 Standards for High Reliability.

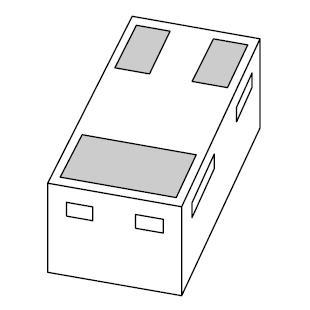

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSS84
BSS84
Fairchild Semiconductor
MOSFET SOT-23 P-CH ENHANCE
Data Sheet
0-1: $0.17
1-25: $0.15
25-100: $0.09
100-250: $0.05
BSS84(Z)
BSS84(Z)
Other

Data Sheet
Negotiable
BSS84,215
BSS84,215
NXP Semiconductors
MOSFET P-CH DMOS 50V 130MA
Data Sheet
0-1: $0.04
1-25: $0.03
25-100: $0.03
100-250: $0.03
BSS8402DW
BSS8402DW
Other

Data Sheet
Negotiable
BSS84-7
BSS84-7
Diodes Inc.
MOSFET -50V 250mW
Data Sheet
Negotiable
BSS84-7-F
BSS84-7-F
Diodes Inc.
MOSFET -50V 250mW
Data Sheet
0-1: $0.25
1-10: $0.18
10-100: $0.08
100-500: $0.07
BSS84AK,215
BSS84AK,215
NXP Semiconductors
MOSFET P-CH -50 V -180 mA
Data Sheet
0-1: $0.06
1-25: $0.05
25-100: $0.05
100-250: $0.05
BSS84AKS,115
BSS84AKS,115
NXP Semiconductors
MOSFET P-CH -50 V -160 mA
Data Sheet
0-1: $0.23
1-25: $0.19
25-100: $0.15
100-250: $0.11
